MX200-4.5 44A LED Display Screen Power Supply

Product Specfication:

Model No.

      MX200-4.5

Input Voltage

      200-240VAC 50/60Hz

Max. Power

      200W max

Output Type

      Constant voltage

Efficiency

      >85%

Output Voltage

      4.5VDC

Output Current

      44A max

Operating Temperature

      -30ºC~+50ºC

Installation

      LED Display Screen

IP Rating

      IP20

Cooling

      Free Air

Product Size(L*W*H)

      190*81.6*29.6 mm

Net Weight(g)

      361g

Packing Quantity

      30 PCS/Carton

Carton Size(L*W*H)

      453*238*300 mm

Availability:
  • MX200-4.5

  • MINJON

*Super slim,high efficiency, 100% full power
*With over voltage, over current and short circuit protection to ensure the safety of the power supply
*Use aviation aluminum alloy and imported American Onsemi chip
*Can be used to low temperature and high temperature environment with high stablity
*100% full load aging test at high temperature with low failure rate and high reliability

MX200-4.5 44A LED Display Screen Power Supply

1.Ultra light &Slim

The LED switching power supply with high purity aluminum dhell,,Materials more solid ,better heat dissipation.The new design scheme of LED power supply is adopted to optimize the internal structure, and the power supply product is thinner and lighter than traditional products  ,and convenient trasportation .



2.Ultra high efficiency &Hign performance price ratio

Ultra thin LED switching power supply is more efficient than the traditional power supply.The power supply capacity of the ultra -thin serise is 85%.Traditional power load capacity is 76%,6% higher than the product quality assurance.The price is basically equivalent to the traditional power supply of the same parameters.



3. High grade components & high quality

The LED switching power supply are assembled using high-quality components,all important components of power supply are imported from abroad.All switching power supply 100% full loading aging test and full QC check before shipment,high grade components escort for high quality.



4. Work in the harsh environments

The power supply can be still worked in the harsh environments ,working temperature is -30 - 60 ºC,increase the use range of led power supply and improve the service life of led switching power supply .



MX200W4.5V-2

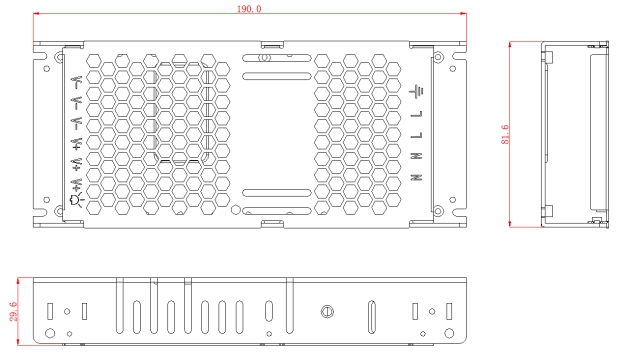

MX200W-5V 3
