Product Specfication:
Model No. BD120W-12V
Input Voltage 180-265VAC 50/60Hz
Max. Power 120W max
Output Type Constant voltage
Efficiency >85%
Output Voltage 12VDC
Output Current 10A max
Operating Temperature -30ºC~+50ºC
Installation Outdoor rainproof
IP Rating IP23
Cooling Free Air
Product Size(L*W*H) 160*73*48 mm
Net Weight(g) 284g
Packing Quantity 60 PCS/Carton
Carton Size(L*W*H) 515*270*330 mm

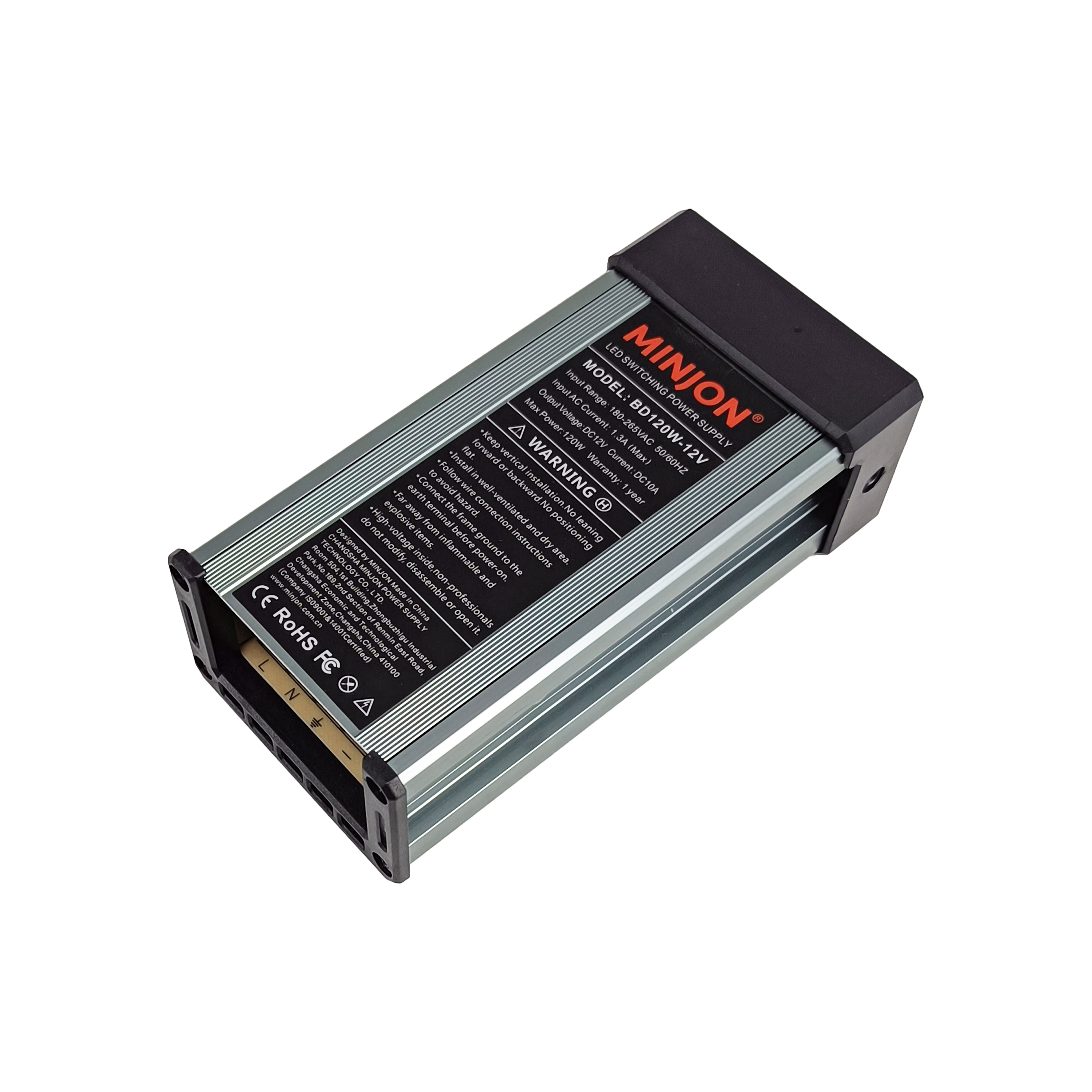

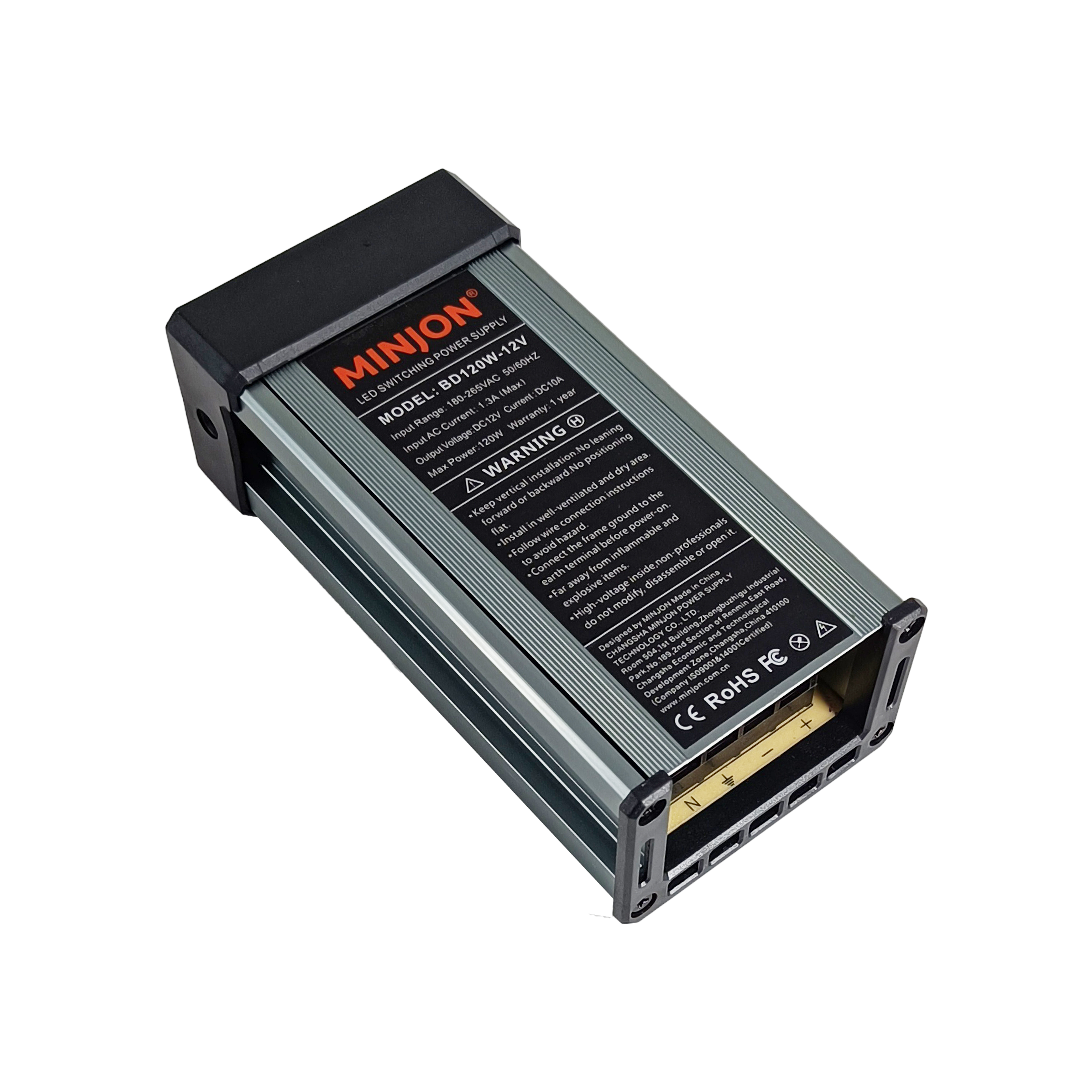

BD120W-12V
MINJON
Economical Rainproof Power Supply
*60~400W available,can meet different needs of customers
*Full load aging test for two hours
*Full built-in protection functions(over-load, over current, over-voltage, short-circuit protections)
*Aluminum body, flame resistant insulating plastic, rainproof structure, light and has a good heat dissipation
*It has been sold to all over the world about 10 years with high stability and safety
Economical Rainproof Power Supply
*60~400W available,can meet different needs of customers
*Full load aging test for two hours
*Full built-in protection functions(over-load, over current, over-voltage, short-circuit protections)
*Aluminum body, flame resistant insulating plastic, rainproof structure, light and has a good heat dissipation
*It has been sold to all over the world about 10 years with high stability and safety
