Product Specfication:
Model No. MZ400W-24V
Input Voltage 180-265VAC 50/60Hz
Max. Power 400W max
Output Type Constant voltage
Efficiency >85%
Output Voltage 24VDC
Output Current 16.7A max
Operating Temperature -30ºC~+50ºC
Installation Outdoor rainproof
IP Rating IP23
Cooling Fan
Product Size(L*W*H) 220*118*55 mm
Net Weight(g) 680g
Packing Quantity 30 PCS/Carton
Carton Size(L*W*H) 460*315*400 mm

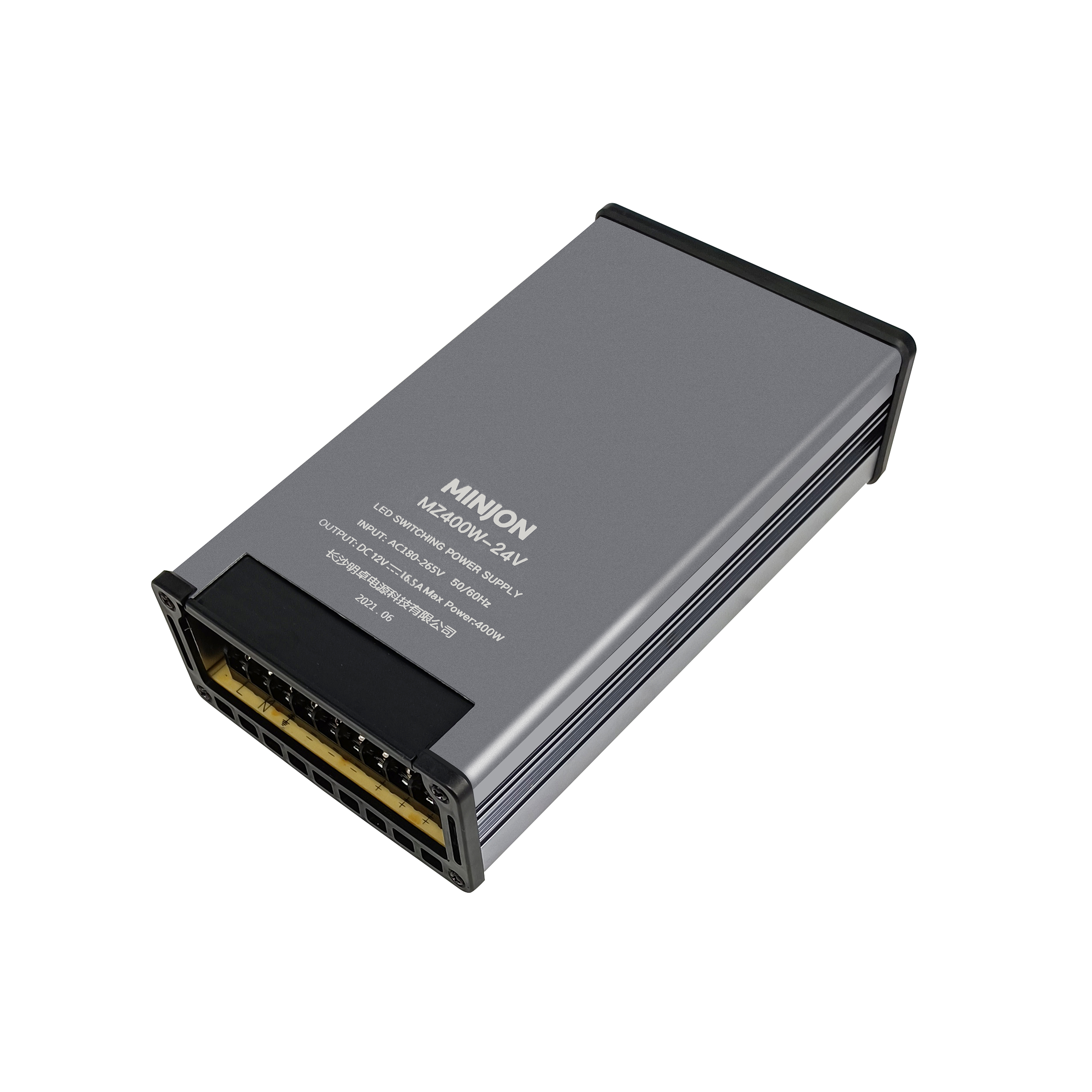

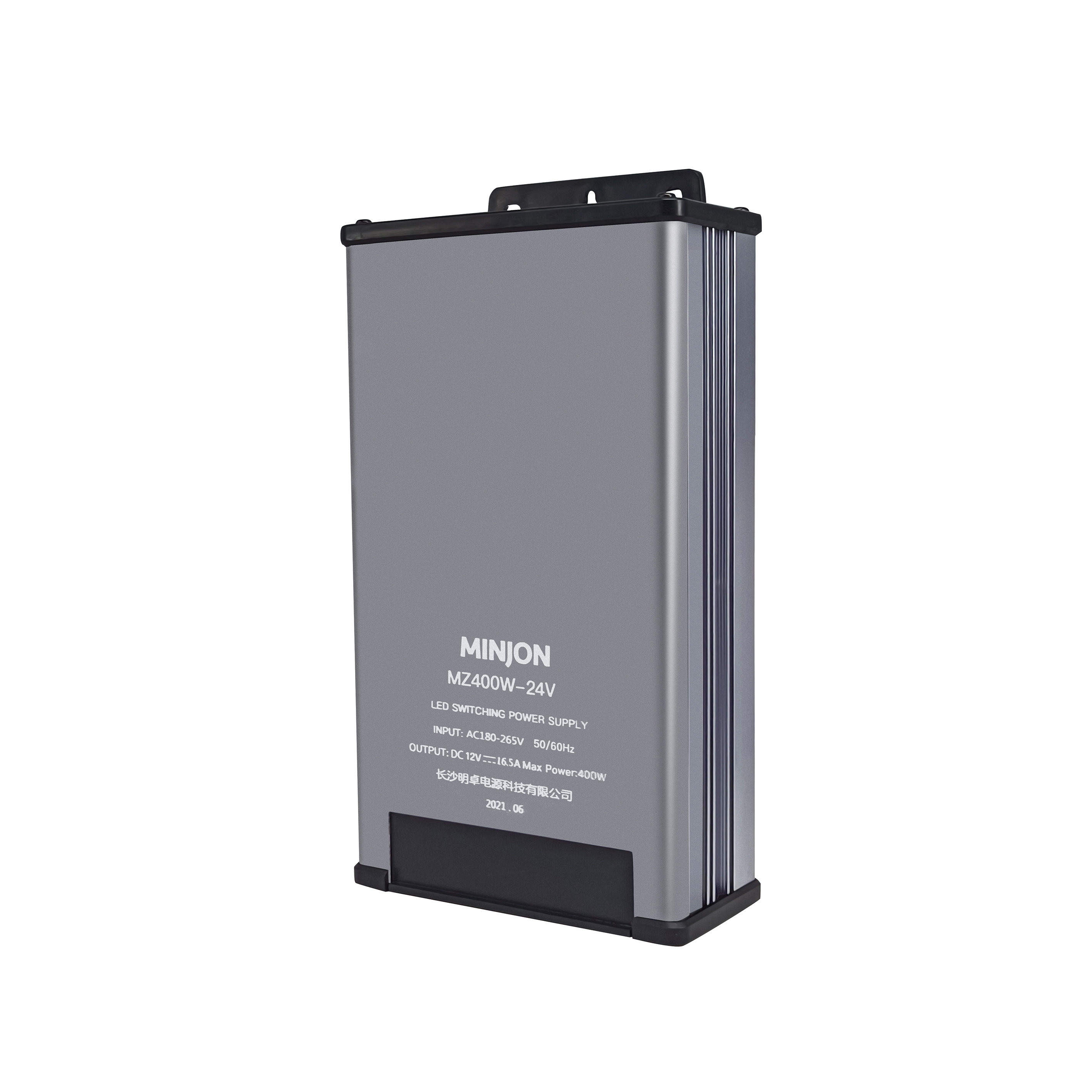

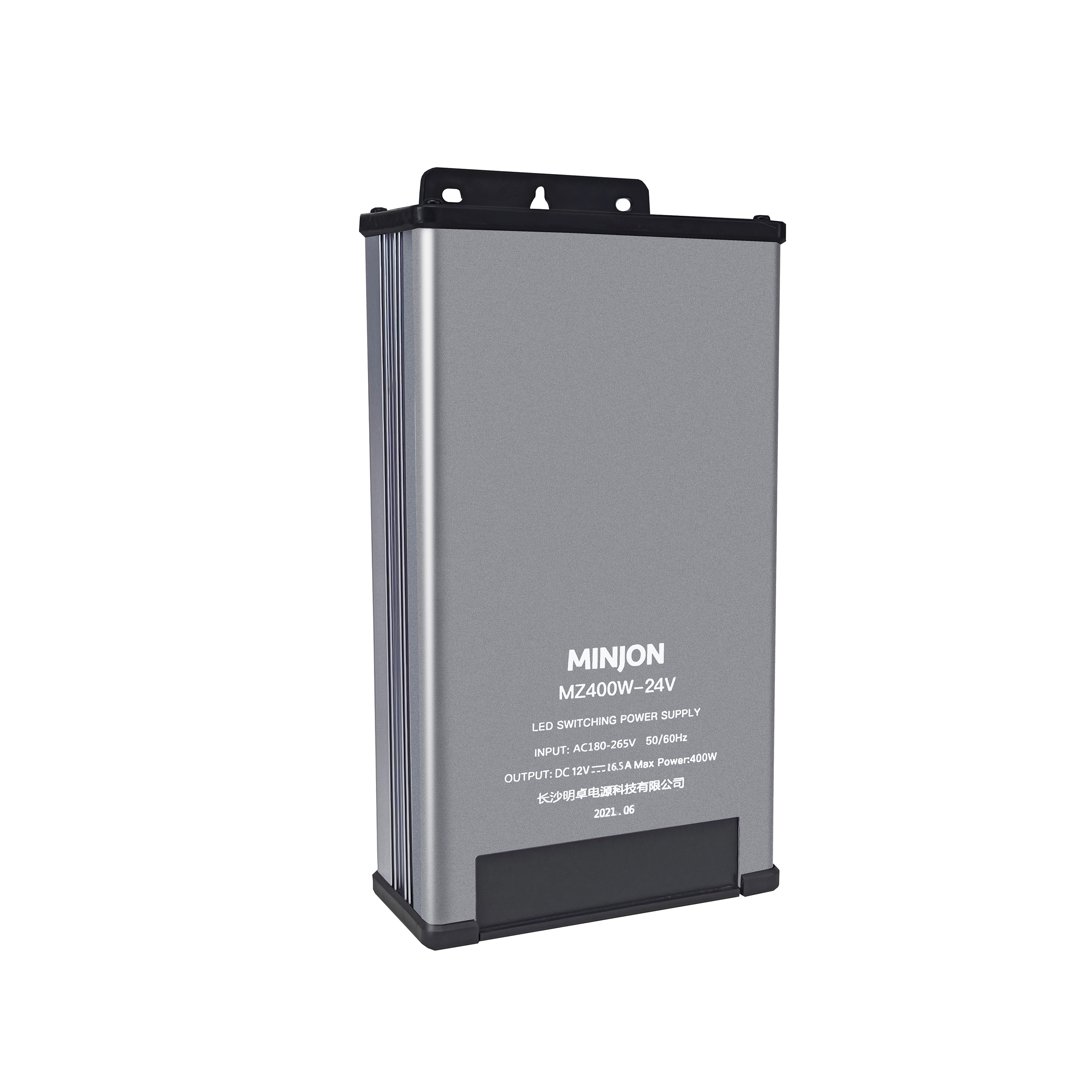

MZ400W-24V
MINJON
* Constant voltage design, 2 years warranty,with smart LED load indicator
* Excellent performance, suitable for outdoor lighting project
* Use aviation aluminum alloy and imported American Onsemi chip
* Wide range of working environment temperature: - 30 ~ + 50 ºC
* With short circuit, overload, over voltage protection
* 100% full load aging test at high temperature with low failure rate and high reliability
* Constant voltage design, 2 years warranty,with smart LED load indicator
* Excellent performance, suitable for outdoor lighting project
* Use aviation aluminum alloy and imported American Onsemi chip
* Wide range of working environment temperature: - 30 ~ + 50 ºC
* With short circuit, overload, over voltage protection
* 100% full load aging test at high temperature with low failure rate and high reliability
