Product Specfication:
| Model No. | MZ250W-12V |
| Input Voltage | 180-265VAC 50/60Hz |
| Max. Power | 250W max |
| Output Type | Constant voltage |
| Efficiency | >85% |
| Output Voltage | 12VDC |
| Output Current | 20.8A max |
| Operating Temperature | -30ºC~+50ºC |
| Installation | Outdoor rainproof |
| IP Rating | IP23 |
| Cooling | Fan |
| Product Size(L*W*H) | 181*98*50 mm |
| Net Weight(g) | 495g |
| Packing Quantity | 40PCS/Carton |
| Carton Size(L*W*H) | 410*300*445 mm |

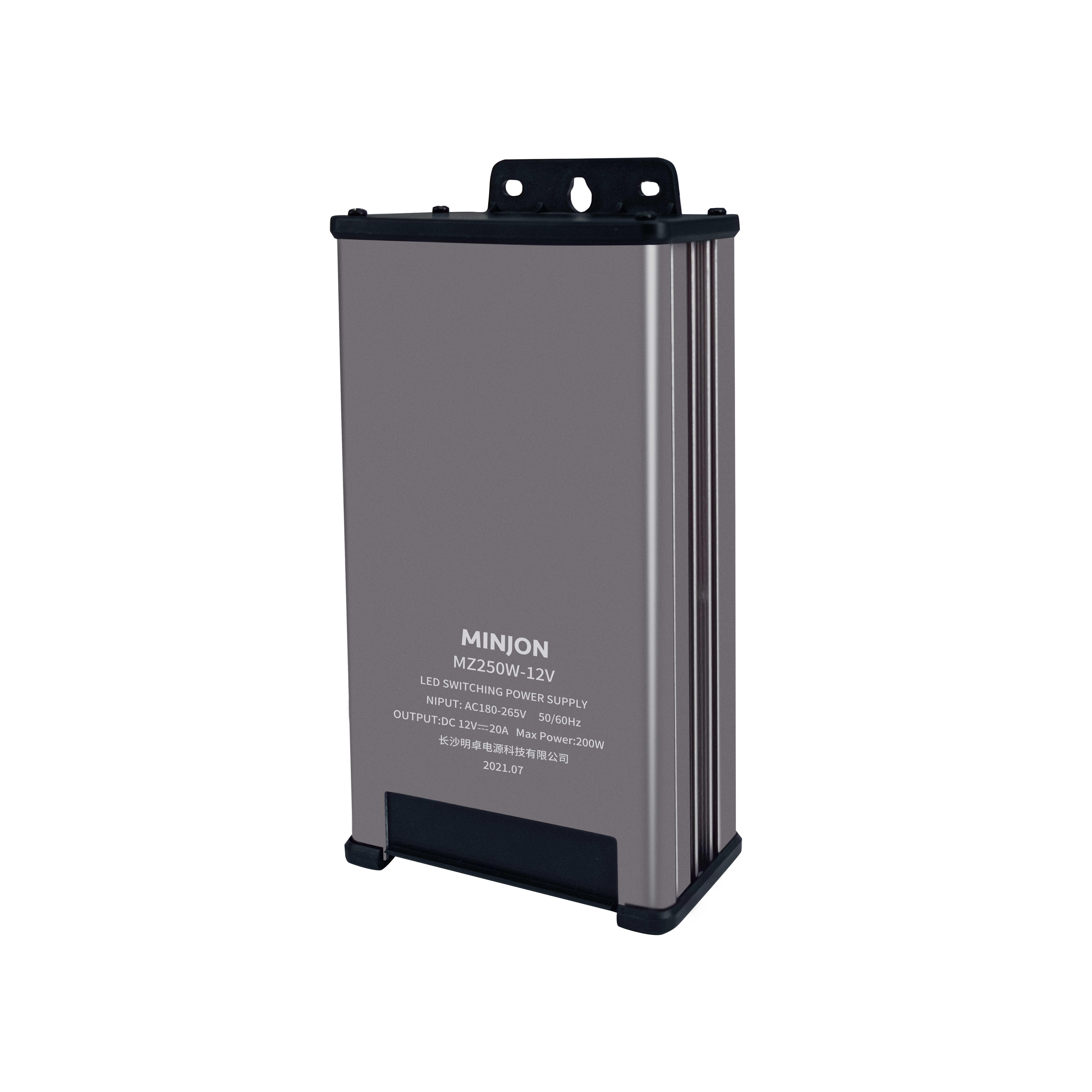

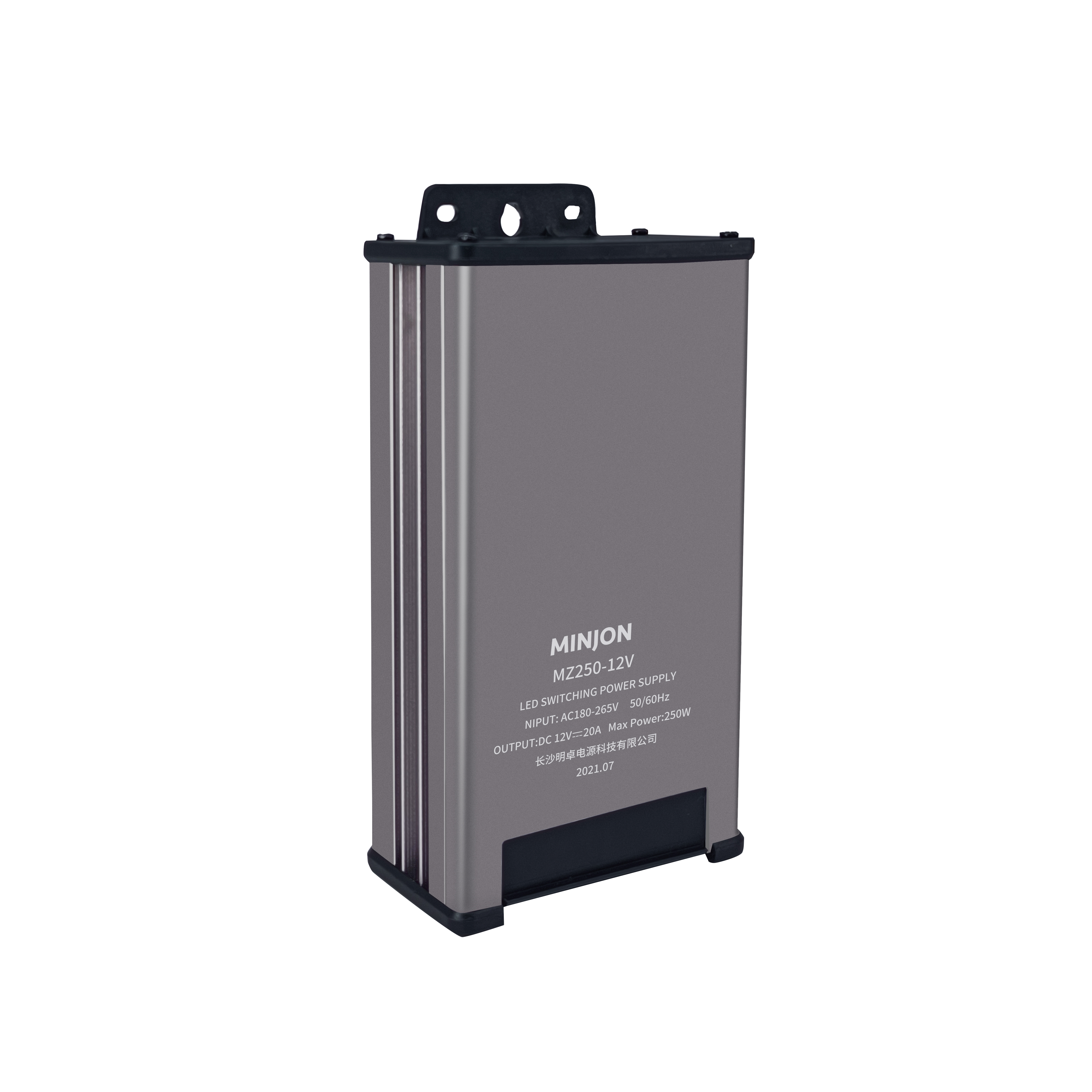

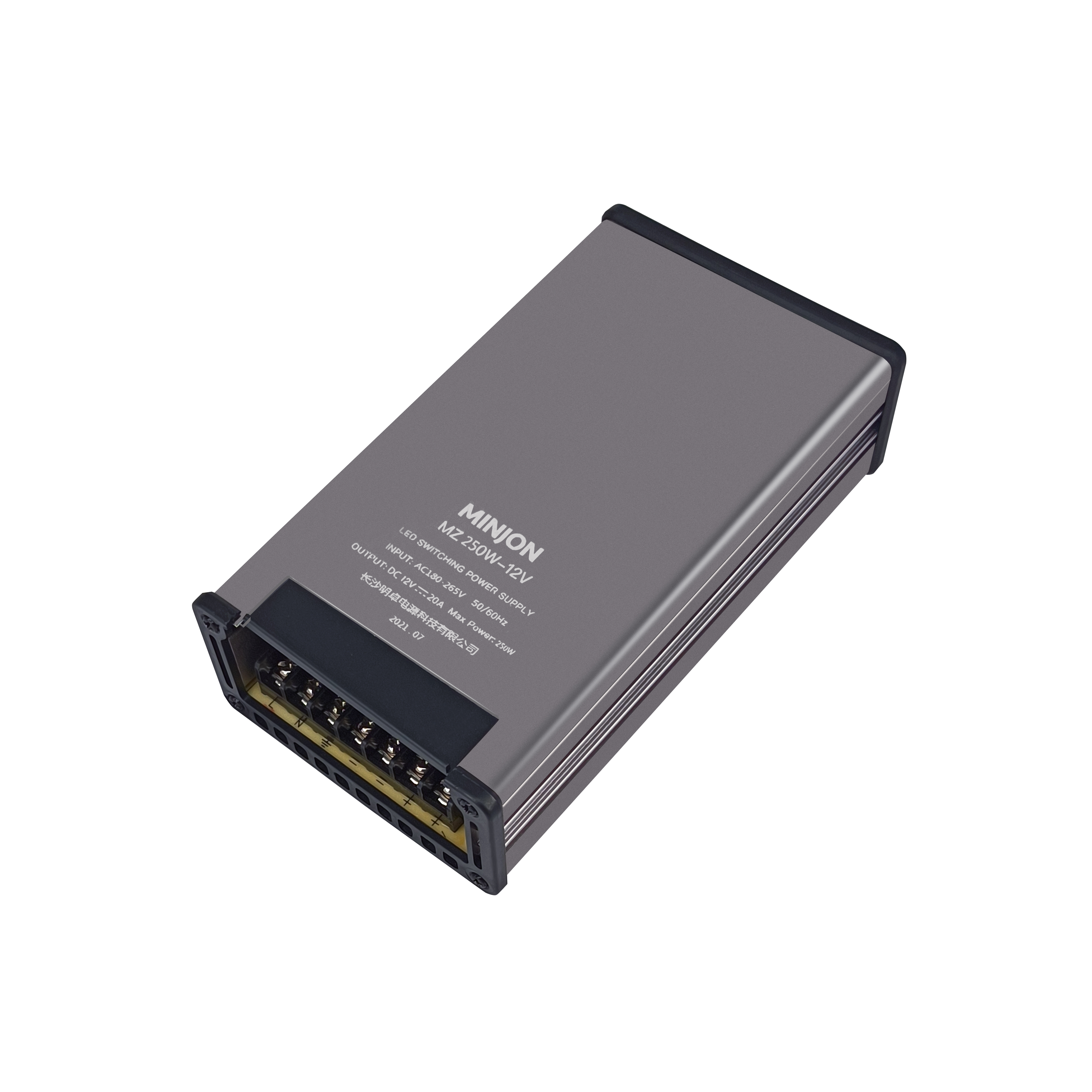

MZ250W-12V
MINJON
* Constant voltage design, 2 years warranty,with smart LED load indicator
* Excellent performance, suitable for outdoor lighting project
* Use aviation aluminum alloy and imported American Onsemi chip
* Wide range of working environment temperature: - 30 ~ + 50 ºC
* With short circuit, overload, over voltage protection
* 100% full load aging test at high temperature with low failure rate and high reliability
* Constant voltage design, 2 years warranty,with smart LED load indicator
* Excellent performance, suitable for outdoor lighting project
* Use aviation aluminum alloy and imported American Onsemi chip
* Wide range of working environment temperature: - 30 ~ + 50 ºC
* With short circuit, overload, over voltage protection
* 100% full load aging test at high temperature with low failure rate and high reliability
